Tangible Interaction Design / Education

Building empathy and understanding towards climate change for young children using tangible interactions

Climate Kids was awarded the Ignite Grant by Jacobs Institute of Design, UC Berkeley. Ignite grants help push projects to the next stage, providing support for teams with existing prototypes and demonstrated potential for impact. This is our pivoted, second iteration of the original Climate Kids project. View the first iteration here.

Climate Kids 2.0 is an interactive game allowing participants to build a city from scratch, utilizing natural resources, while exploring the subtle negotiations between sustainability and development.

Our Team

Alyssa Li, Gabriela Cibils, Parina Gujral, Franchesca Spektor

My Role

Researcher, Game Designer, Interaction Designer, UX Engineer (Arduino)




Reflections

The key critique from our CHI proposal was focused how we did not take advantage of the tangible medium in our physical verse. However, from further evaluation, we emerged our focus into the multi-modal feedback of tangible objects, catching children's attention onto the cause-and-effect relationships of climate change.

We thoroughly discussed all the critique we received from our advisor,  from the participants of the showcase and from CHI. Additionally, we began to explore ideas we struggled to the previous semester due to time constraints.

Critique Insights - the Medium

  • We have not been designing to the advantages on TUI, hence if we decided to pursue the route of tangibility we must utilize the gradual nature of the medium

  • Our current prototype not co-construct a world for the users, there is a severe lack of control.

  • Gamification may be integral in learning such abstract concepts as an incentive pushes one to conquer the obstacles, as we saw with the rainbow 'light show'

  • The age group we are currently targeting will not be able to understand the complex concepts of cause and effect

Critique Insights - Interaction

  • When children grow up, it's important for them to learn the utility of the tool and not just the cause and effect of it

  • Features of the interaction must be designed in a way to allow the children to see how and WHY it's designed the way it is

  • Tangible interactions need to have a direct mapping, hence the burden of the learning must lie in the interaction and not simply the abstract thought process prior to the interaction

  • We must focus on showcasing the tradeoff between sustainability and development as want to emphasize that conserving energy does not mean eradicating its use.

Screen Shot 2018-11-13 at 5.35.18 AM.png

Phase 1: Concept

Initial Ideas

IDEA 1: Construct a city where children in the classroom play roles in the city council: developer, city health, etc.

IDEA 2: Divide the land into a city and a forest, allowing participants to play different roles in the development and playing with the boundaries of two.

IDEA 3: Generate energy in a city with no energy supply using means of input provided.

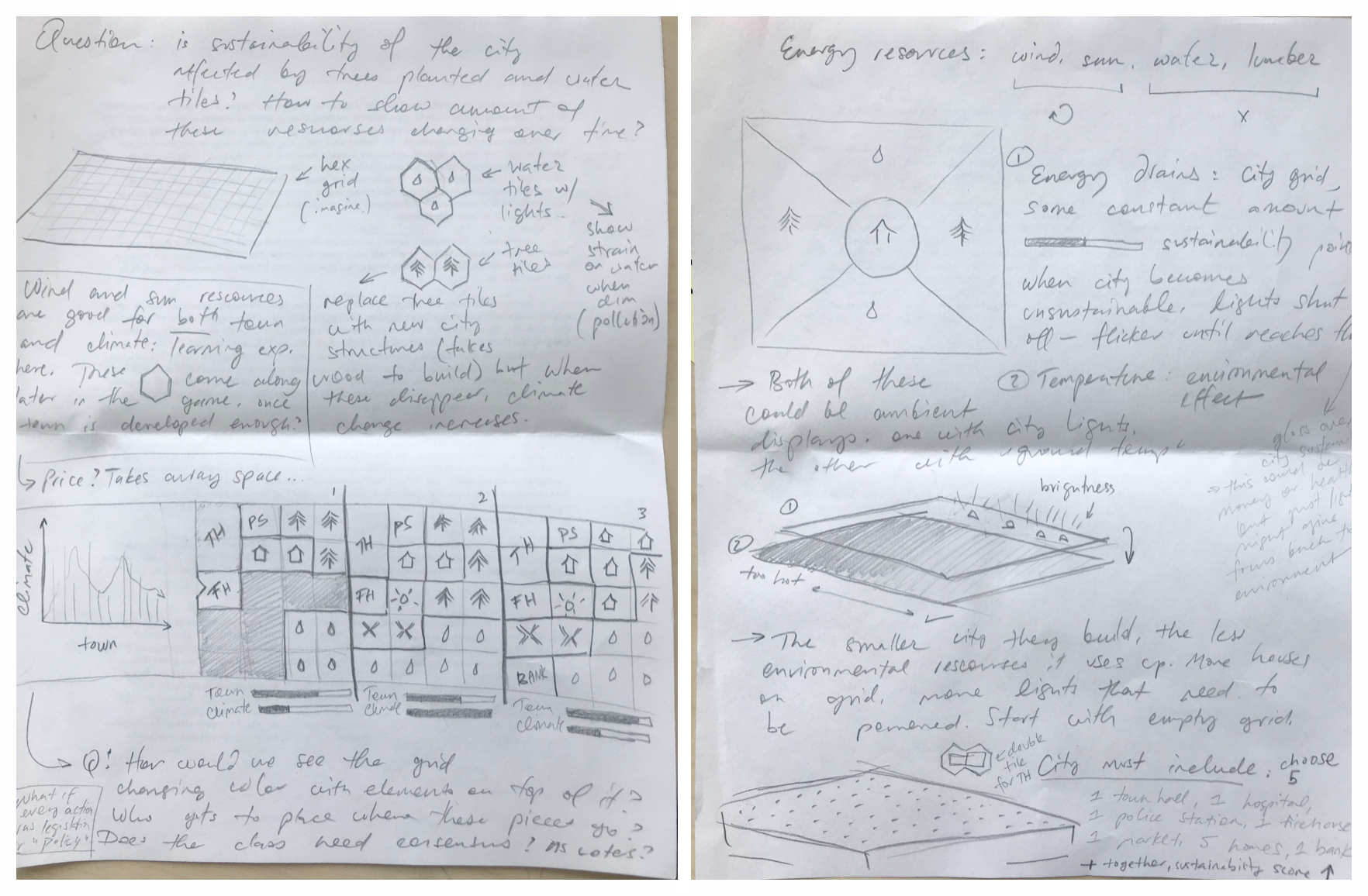

Screen Shot 2018-11-13 at 5.51.44 AM.png

Balancing Sustainability & Development

Eventually, through interviews with teachers from institutions, environmental science professors at Berkeley, we established that our aim was to teach the subtle negotiations between sustainability and development and how can disturb or prosper either.

The goal of our interactive game is to balance the “strength” of the town elements with the environmental resources. The development (town pieces on the grid), the more the town benefits. The more sustainability (environmental resources are on the grid), the more the ecosystem benefits. Renewable resources are good for both the town and the environment → this presents a learning goal for students.

2.0 - town happiness .jpg

“Strength” or “happiness of the town”

Can be presented as two overlapping ambient displays, as shown here

Phase 2: Concept Development & Prototyping

We began brainstorming at the root of our aim, educate the younger generation about climate change in order to build empathy about their actions. Hence, we questioned what form of climate change education we should offer in the first place: greenhouse gases, water pollution, recycling habits, sustainability, development under climate change, the options were endless. However, we kept going back on the idea of co-constructing a world.

Hex Grid.png

The Board layout

The game consists of a bread-type board, shaped as a hexagon. The board itself is made up of small hexagon spaces, which can be filled in with hexagon pieces. This represents the town. Around the town is a circular belt with establishes the health of the town development and the health of the town's ecosystem.

Screen Shot 2018-11-13 at 6.10.56 AM.png

Phase 3: Playtesting

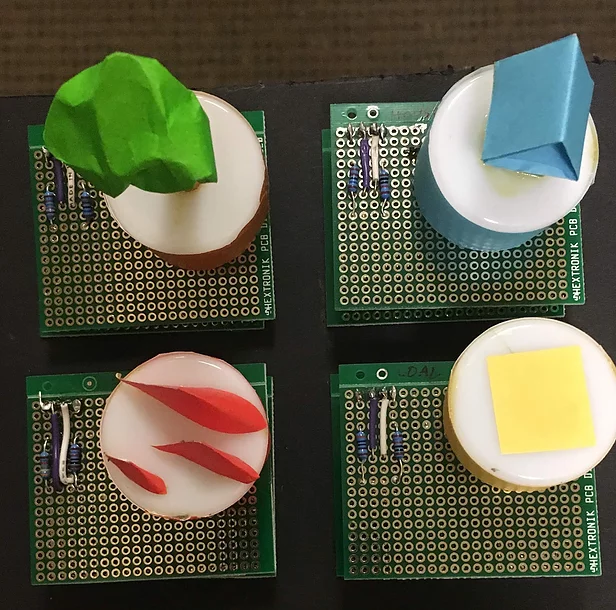

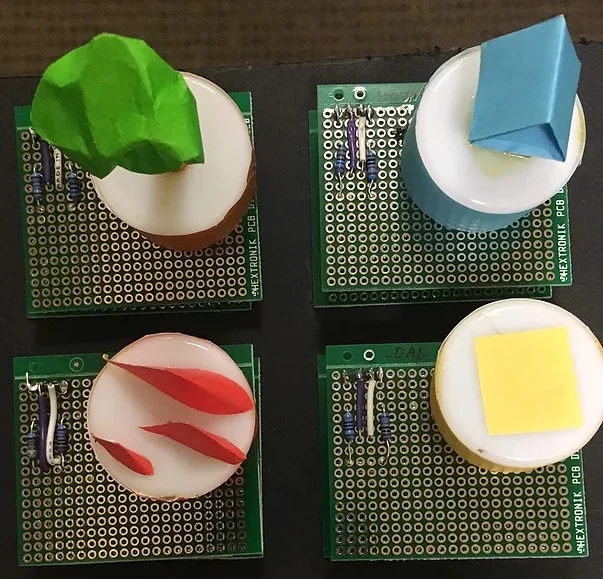

There are five essential hexagons shaped pieces in the interactive game: tree, house, ore, power supply (coal and renewable).

Tree: A tree piece acts as an unplanted seed when it has not been inserted in the town. When it is 'plugged-in', the tree is planted and grows over a period of time. Once the tree is grown, it will eject small pieces of lumber which can be used for community construction.

  • Each town tile requires 3 pieces of lumber to be activated as a working part.

  • Three empty sockets that register when a piece of lumber is placed in it.

  • All 3 pieces together complete the circuit, so the code detects on and off.

  • LED that lights up when energy tiles are nearby. LED can also light up if a solar token is placed on top (?).

Town: A town piece can only be constructed using the lumber from the tree. It can be placed into the town hexagon, however, requires to be supplied with power to be completely functional.

  • Each town tile requires 3 pieces of lumber to be activated as a working part.

  • Three empty sockets that register when a piece of lumber is placed in it.

  • All 3 pieces together complete the circuit, so the code detects on and off.

  • LED that lights up when energy tiles are nearby. LED can also light up if a solar token is placed on top

Ore: An ore piece acts similar to the natural resource of the tree, however, it also needs to be established over time. Once this process is completed, ore pieces will be disposed from the board which can be used to create power supplies.

  • Fading LED that cycles as ore is dispensed.

  • Bright == tells board to dispense ore.

  • Fade out again on a loop.

  • Loops infinitely unless there is an event that hinders ore health.

Power Supply: Ore pieces can be used to either construct a coal power supply or a renewable power supply. Coal power supply requires fewer ore pieces to be constructed and can be fully formed at a faster rate, as compared to the renewable power supply. However, it causes more environmental degradation.

  • Each coal tile requires 2 pieces of ore to be activated as a working part, and 3 for the renewable.

  • Coal produces more waste than renewable energy.

  • The power supply will light up 3 town pieces in its vicinity.

Challenges

Designing a tangible board game is no easy task! There were a number of challenges with the new prototype. On the technical implementation, we found that a hex grid would be very difficult to implement, and hence went with a rectangular grid. Since we are designing a tangible board game, we needed a board that could sense not only if there are pieces on parts of the board, but if yes, what type of pieces (house? ore?). We eventually decided to go with the use of voltage, where we assign a specific resistor for each piece, and program the corresponding voltage within the Arduino code.

Climate Kids 2.0.png

Final Prototype

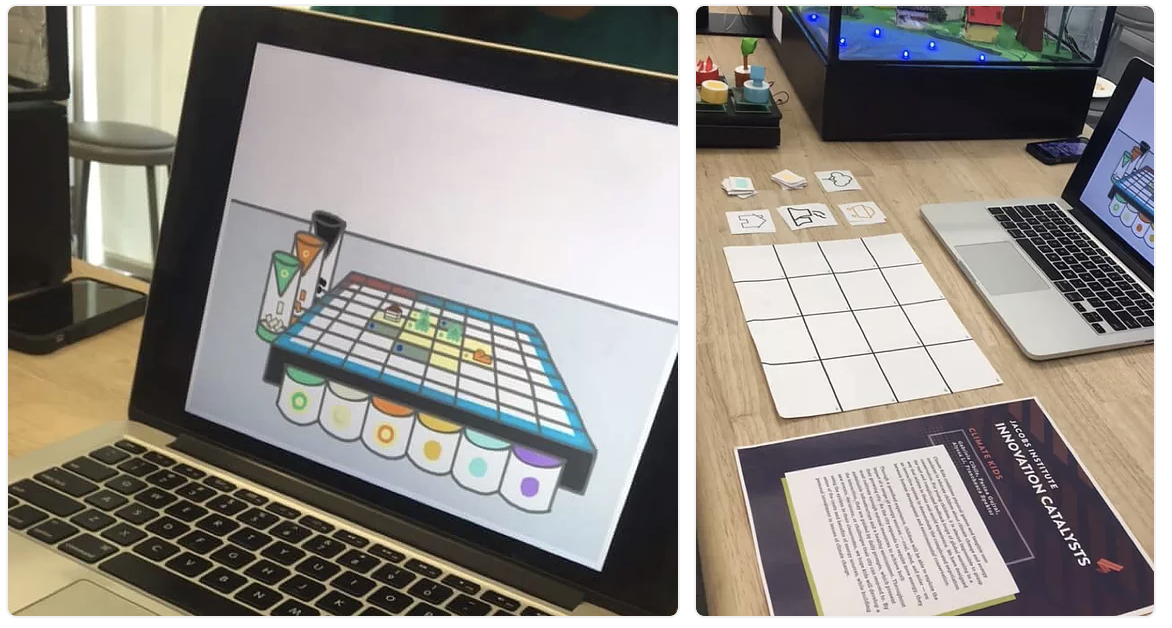

The final prototype is a proof-of-concept, where we created a small Arduino-powered prototype presenting the basic mechanisms of each resource tile. Additionally, we created a small graphic which animated the game play.

Screen Shot 2018-11-13 at 6.39.09 AM.png

Showcase

Presentation as part of the Jacobs Spring Design Showcase 2018
